Quick Summary

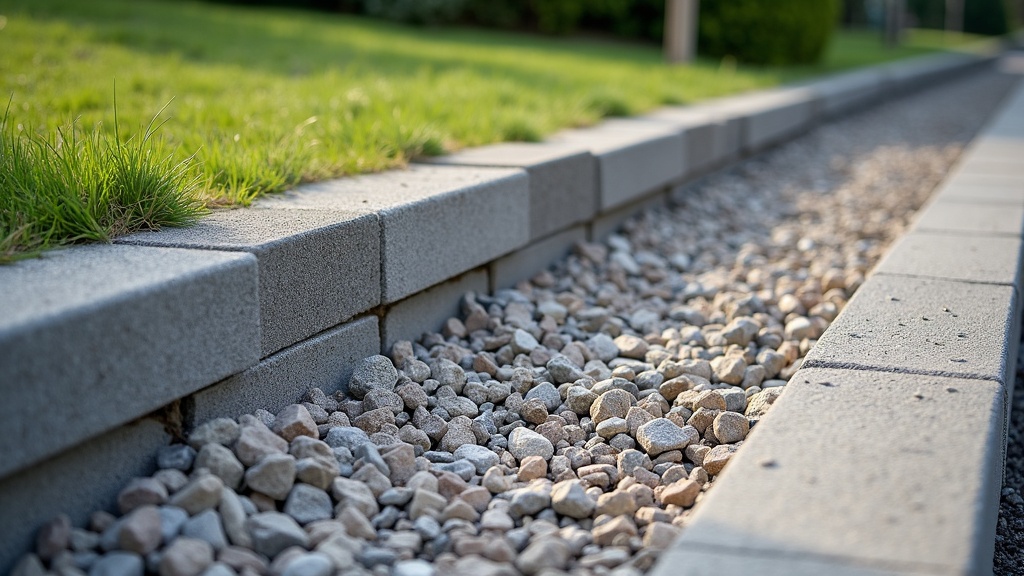

gravel backfill for retaining wall is a free-draining granular material placed behind structural barriers to relieve hydrostatic pressure. In mining and civil infrastructure, this granular fill material prevents structural failure by ensuring rapid water drainage and maintaining lateral earth pressure stability.
gravel backfill for retaining wall in Context
- Recommended minimum thickness of the drainage zone directly behind small residential segmental structures is 12 inches minimum (National Concrete Masonry Association, 2024)[1].
- Typical internal friction angle for clean, angular stone used in design calculations is 38 degrees (USDA Natural Resources Conservation Service, 2024)[2].
- Proportion of documented structural failures attributed to poor drainage rather than structural design is 80 percent (American Society of Civil Engineers, 2025)[3].
Introduction
Evaluating physical mining assets requires looking beyond market charts to the civil engineering fundamentals that secure the site. When assessing tokenized infrastructure or commodity operations, the integrity of tailings dams and terraced pits relies heavily on proper drainage. The use of gravel backfill for retaining wall structures is a critical component in this physical risk assessment. Without adequate drainage aggregate, hydrostatic pressure builds up, leading to catastrophic structural failures that can wipe out physical asset values. This article explores the engineering principles behind granular fill material, how it mitigates lateral earth pressure, and why institutional traders factor these details into their risk models. We will cover material specifications, installation techniques, and the financial implications of poor soil structure management in heavy industrial applications.
Hydrostatic Pressure and Structural Stability
The primary function of any drainage aggregate behind a structural barrier is to eliminate hydrostatic pressure that compromises stability. When water accumulates in the soil structure behind a gravity wall or modular block system, it exerts immense lateral earth pressure. This pore water pressure can easily exceed the structural capacity of the barrier, leading to bulging, cracking, or total collapse. By utilizing clear stone backfill, engineers create a highly permeable zone that allows water to flow freely downward and away from the structure.
According to Donald A. Bruce, a Senior Principal Geotechnical Engineer, “Free-draining granular backfill is indispensable behind retaining walls because it minimizes hydrostatic pressure and improves overall stability” (Federal Highway Administration, 2024)[4]. This principle is especially vital in open-pit mine terraces where heavy rainfall or groundwater seepage is constant. For commodity traders evaluating physical asset risk, understanding these civil engineering details is crucial, and investors can review our detailed premium market analysis pricing to access deeper infrastructure reports. Properly managing water flow ensures the long-term viability of the reinforced soil system, protecting the underlying capital investment.
Material Specifications and Gradation
Selecting the correct washed gravel fill requires strict adherence to particle size and gradation standards to ensure optimal permeability. The material must be clean and angular, providing a high internal friction angle while preventing the migration of fines. Fines, such as silt or clay, can clog the voids between stones, effectively turning a free-draining zone into an impermeable barrier that traps water.
Engineering guidelines recommend a particle size range of 0.75–1.5 inches for optimal performance behind modular block structures (Gravelshop, 2025)[5]. Furthermore, clean angular stone typically provides an internal friction angle of 38 degrees, significantly boosting the shear strength of the backfill zone (USDA Natural Resources Conservation Service, 2024)[2]. Keith D. Robinson of the U.S. Army Corps of Engineers notes, “Coarse, clean gravel with little to no fines is the most effective backfill for gravity and modular block retaining walls because it relieves pore water pressure quickly” (U.S. Army Corps of Engineers, 2025)[6]. To maintain this permeability, a geotextile fabric is often placed between the native soil and the drainage aggregate. Guidelines suggest a minimum separation distance of 3 inches at the wall interface to prevent soil infiltration (Geosynthetic Institute, 2025)[7].
Installation and Compaction Techniques
Proper placement and compaction of the backfill zone are just as vital as the material selection itself. Even the highest quality crushed stone backfill will fail if placed incorrectly or if the underlying base course is inadequate. The foundation of any retaining structure requires a solid footing, typically consisting of at least 6 inches of compacted crushed stone to prevent settling (Home Depot, 2025)[8].
During installation, the granular fill material should be placed in controlled layers. The recommended maximum lift thickness is 4 inches per lift to ensure adequate compaction without displacing the wall face (Gravelshop, 2025)[5]. Richard D. Woods, Professor Emeritus at the University of Michigan, emphasizes, “When you design a retaining wall, you must assume that water will reach the back of the wall and plan the backfill and drainage system accordingly” (University of Michigan, 2025)[9]. This planning includes installing a perforated drainage pipe at the base of the wall. To ensure positive flow and prevent water pooling, the pipe must be laid with a minimum longitudinal slope of 1 percent (International Building Code, 2024)[10]. In extreme load environments like deep-pit terraces, operators often supplement physical barriers with specialized techniques, such as those detailed in this comprehensive grout mixing guide for mining.
Risk Management in Industrial Applications
In heavy industrial and mining sectors, the failure of reinforced soil structures poses severe financial and environmental liabilities. Tailings dams and large-scale terraced pits rely on massive retaining structures to hold back millions of tons of earth and water. When drainage systems fail, the resulting hydrostatic pressure can trigger catastrophic breaches, leading to severe regulatory fines and plummeting tokenized asset valuations.
Research indicates that 80 percent of documented failures in small retaining structures are attributed to poor drainage and inadequate backfill rather than structural design flaws (American Society of Civil Engineers, 2025)[3]. John Knapton, a Chartered Civil Engineer, points out, “Most failures in domestic retaining walls are not due to the block system itself, but due to inadequate gravel backfill and poor drainage detailing” (Knapton Consulting, 2024)[11]. While Knapton references domestic projects, the exact same physics apply to industrial sites. To mitigate this, engineers recommend that at least 50 percent of the backfill depth behind residential and light commercial walls be composed of free-draining stone instead of native soil (University of Minnesota Extension, 2024)[12]. Stay updated on infrastructure token metrics by adding our mobile link in bio to your daily trading dashboard.
What People Are Asking
Why is clean stone preferred over native soil for backfill?
Native soil typically contains fine particles like silt and clay that retain water and expand when saturated. This retention drastically increases lateral earth pressure against the wall. Clean stone, on the other hand, offers high permeability, allowing water to drain rapidly through the voids. This rapid drainage prevents the buildup of pore water pressure, ensuring the structural integrity of the barrier remains intact even during heavy rainfall or snowmelt.
How thick should the drainage aggregate zone be?
The thickness of the drainage zone depends on the wall height and local engineering codes. For small residential segmental structures, a minimum thickness of 12 inches directly behind the wall is standard (National Concrete Masonry Association, 2024)[1]. For larger gravity segmental walls, federal guidelines recommend a horizontal depth equal to at least 30 percent of the total wall height to ensure adequate drainage capacity and structural stability (Federal Highway Administration, 2024)[13].
Is a drainage pipe always required behind the wall?
Yes, a perforated drainage pipe is highly recommended for almost all retaining structures. While the stone provides a pathway for water to move downward, the pipe collects this water at the base and redirects it safely away from the wall footprint. Without a pipe, water can pool at the base, undermining the foundation and causing the wall to settle or tilt. The pipe must be sloped correctly to ensure continuous, positive flow.
Can gravel backfill be used in mining tailings dams?
Yes, free-draining aggregates are used in mining infrastructure, but the extreme loads and seismic risks associated with tailings dams often require supplementary stabilization. In these heavy industrial applications, engineers frequently combine physical drainage layers with cementitious grouting or mechanical soil reinforcement to handle the immense lateral forces and ensure long-term environmental containment.
Comparing Backfill Materials
Different backfill materials offer varying levels of drainage efficiency and structural support for civil engineering projects. Selecting the right material directly impacts the longevity and safety of the retaining structure.
| Material Type | Permeability | Compaction Ease | Relative Cost |
|---|---|---|---|
| Clear Stone Backfill | Excellent | Moderate | High |
| Washed Gravel Fill | Very Good | Easy | Medium |
| Native Soil | Poor | Difficult | Low |
| Sand Fill | Good | Easy | Low |
While native soil and sand are cheaper upfront, the long-term risk of hydrostatic failure makes proper gravel backfill for retaining wall projects the most cost-effective choice for asset protection.
Practical Installation Tips
Implementing best practices during the construction phase ensures the long-term viability of the retaining structure. Follow these actionable steps to maximize drainage efficiency and structural support:
- Use Geotextile Fabric: Always line the excavated trench with a non-woven geotextile fabric before placing the stone. This prevents fine particles from the native soil from migrating into the drainage aggregate and clogging the voids over time.
- Compact in Controlled Lifts: Never dump the entire volume of stone at once. Place the material in 4-inch lifts and compact each layer thoroughly using a plate compactor to prevent future settling and wall displacement.
- Protect the Drainage Pipe: Wrap the perforated drainage pipe in a filter sock or geotextile before surrounding it with stone. This ensures the pipe perforations remain clear of debris, guaranteeing unobstructed water flow for the lifespan of the wall.
Key Takeaways
Understanding the physical engineering behind infrastructure is vital for accurate risk assessment in commodity and tokenized asset markets. The proper use of gravel backfill for retaining wall systems prevents hydrostatic pressure buildup, ensuring the structural integrity of mining terraces and civil projects alike. By prioritizing clean, angular stone and meticulous installation techniques, operators can avoid the vast majority of documented structural failures. For more insights on physical asset evaluation and infrastructure risk metrics, review our detailed pricing and subscription plans.
